Title and Description

v3.4.4 and after

You can add the workflows.argoproj.io/title and workflows.argoproj.io/description annotations to a Workflow to display in the workflow lists:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  name: my-wf
  annotations:
    workflows.argoproj.io/title: 'Build and test' # defaults to `metadata.name` if not specified
    workflows.argoproj.io/description: 'SuperDuperProject PR #6529: Implement frobbing (aff39ee)'

The above manifest will render as a row like the below image: Title and Description Example

Embedded Markdown

v3.6 and after

You can also embed Markdown into the annotations:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  name: my-wf
  annotations:
    workflows.argoproj.io/title: '**Build and test**' # defaults to `metadata.name` if not specified
    workflows.argoproj.io/description: '`SuperDuperProject` PR #6529: Implement frobbing (aff39ee)'

The above manifest will render as a row like the below image: Markdown Example

Below are a few more examples:

# 1. markdown title, markdown description using [`remark-gfm`](https://github.com/remarkjs/remark-gfm) to convert URLs into anchor links
metadata:
  annotations:
    workflows.argoproj.io/title: '**feat: Allow markdown in workflow title and description. Fixes #10126**'
    workflows.argoproj.io/description: https://github.com/argoproj/argo-workflows/pull/10553

# 2. no title (defaults to `metadata.name`), no description
metadata:
  name: wonderful-poochenheimer

# 3. markdown titile, no description
metadata:
  annotations:
    workflows.argoproj.io/title: '**Build and test and test**'

# 4. no title (defaults to `metadata.name`), markdown description
metadata:
  name: delightful-python
  annotations:
    workflows.argoproj.io/description: '`SuperDuperProject` PR #6529: Implement frobbing (aff39ee)'

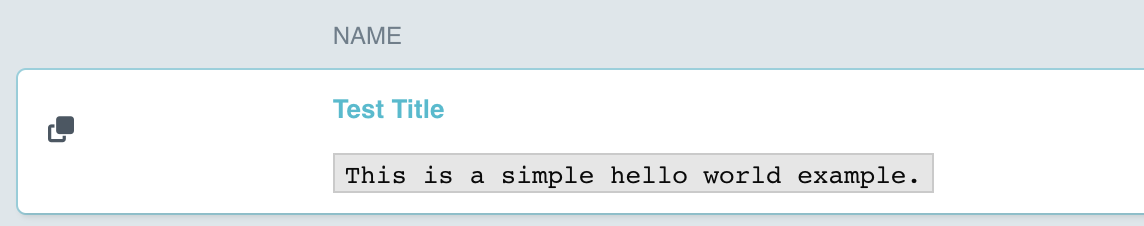

# 5. markdown title, multi-line markdown description with URL converted into an anchor link
metadata:
  annotations:
    workflows.argoproj.io/title: '**Test Title**'
    workflows.argoproj.io/description: |
      `This is a simple hello world example.`
      You can also run it in Python: https://couler-proj.github.io/couler/examples/#hello-world

# 6. markdown title, markdown description with a markdown link
metadata:
  annotations:
    workflows.argoproj.io/title: '**Build and test**'
    workflows.argoproj.io/description: '`SuperDuperProject` PR [#6529](https://github.com): Implement frobbing (aff39ee)'

The above examples will render as rows like the below image: More Markdown Examples
